Combisteel ROOF-TOP NEGATIVE MOUNTED UNIT 6,3-9,8 M3

by Combisteel

€4,859.09

Quantity

The Combisteel Roof-Top Negative Mounted Unit (6.3–9.8 m³) is a compact commercial freezer room cooling unit designed to mount directly onto the roof of a cold room, maintaining temperatures between -15°C and -18°C using R452A refrigerant. With a 1.81 kW motor on 400V, it efficiently serves freezer rooms in the 6.3 to 9.8 m³ range.

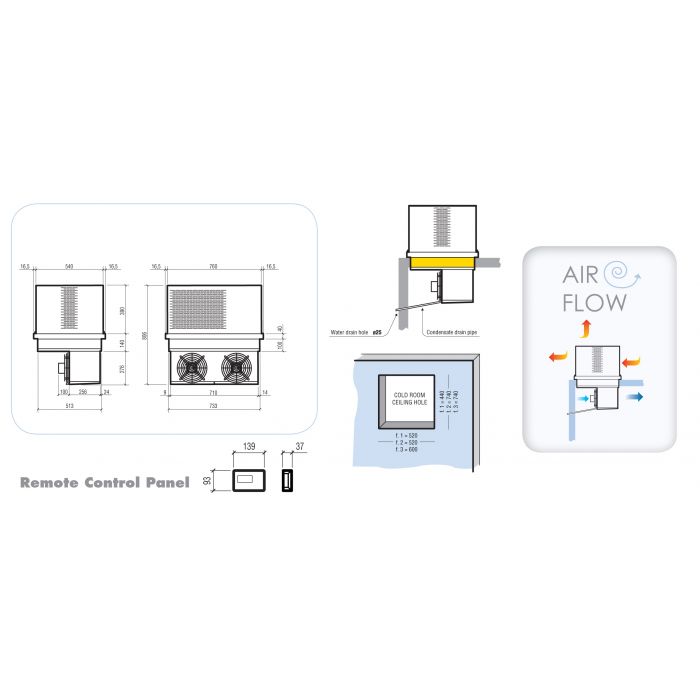

Size: (H) 806mm x (W) 760mm x (D) 540mm

Delivery: 4–10 working days

Warranty: 1 Year Parts & Labour

Combisteel Roof-Top Negative Mounted Unit 6.3–9.8 m³

✅ Roof-top mounting keeps the freezer room floor clear for maximum usable space

✅ Maintains -15°C to -18°C for reliable deep-freeze cold room performance

✅ Suitable for freezer rooms between 6.3 and 9.8 m³

✅ R452A refrigerant with 1000g charge for efficient, sustainable operation

✅ Compact 760x540mm footprint minimises the space taken on the roof panel

Specifications

Width: 760mm
Depth: 540mm
Height: 806mm
Gross Weight: 81 kg
Voltage: 400V
Frequency: 50 Hz
Electrical Power: 1.81 kW
Cooling Agent: R452A
Temperature Range: -18°C / -15°C
Cooling Capacity: >6.3–9.8 m³
Refrigerant Quantity: 1000 g
Climate Control: No
Brand: Combisteel
