Combisteel POSITIVE SPLIT UNIT 22.10-55.84 M3

by Combisteel

€4,747.69

Quantity

The Combisteel Positive Split Unit (22.10–55.84 m³) is a large-capacity split-system cold room refrigeration unit with a separate evaporator (885x475x265mm), using R452A refrigerant on 230V to maintain 0°C to +5°C in positive cold rooms from 22.10 to 55.84 m³. With 1.58 kW motor and automatic defrost, it provides reliable, high-volume cooling for very large commercial cold rooms without needing three-phase power.

Size: (H) 486mm x (W) 746mm x (D) 482mm

Delivery: 4–10 working days

Warranty: 1 Year Parts & Labour

Combisteel Positive Split Unit 22.10–55.84 m³

✅ Covers 22.10 to 55.84 m³ — ideal for the largest commercial cold room installations

✅ Split system design allows flexible evaporator and compressor placement

✅ Maintains 0°C to +5°C for consistent positive cold room refrigeration

✅ Runs on 230V single-phase — no three-phase supply required

✅ Automatic defrost with R452A refrigerant for low-maintenance, efficient operation

Specifications

Width: 746mm
Depth: 482mm
Height: 486mm
Gross Weight: 78 kg
Voltage: 230V
Electrical Power: 1.58 kW
Cooling Agent: R452A
Temperature Range: 0°C / +5°C
Cooling Capacity: 22.10–55.84 m³

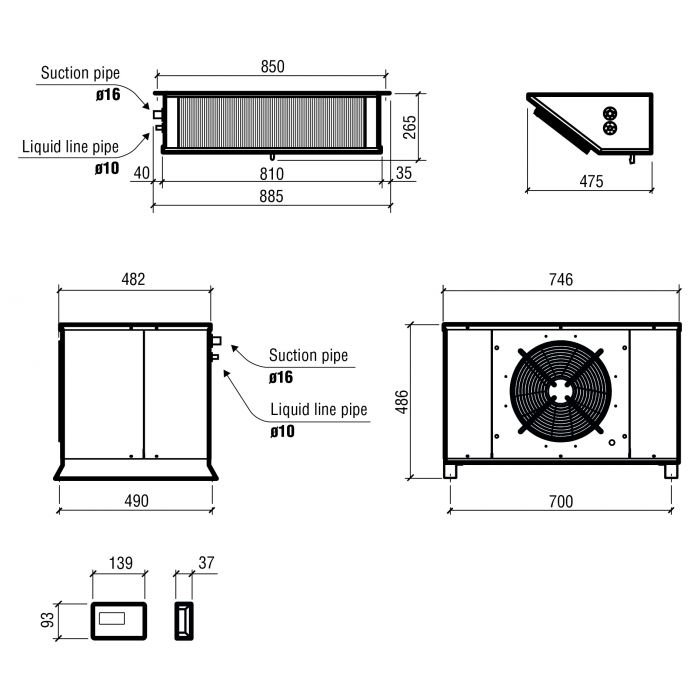

Evaporator Dimensions (WxDxH): 885x475x265mm
Defrost: Automatic
Refrigerant Quantity: 1200 g
