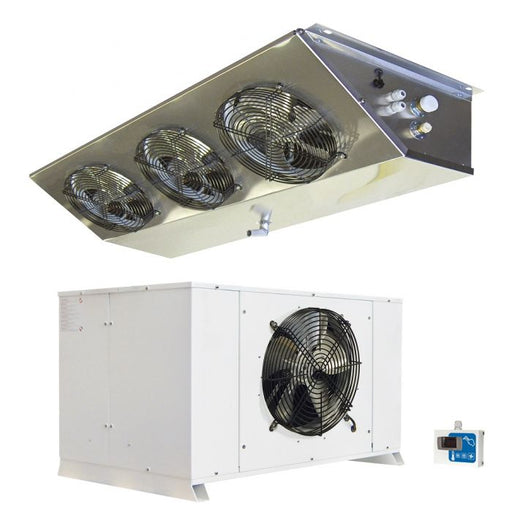

Combisteel NEGATIVE SPLIT UNIT 10.88-21.1 M3

by Combisteel

€5,406.71

Quantity

The Combisteel Negative Split Unit (10.88–21.1 m³) is a high-capacity split-system freezer room cooling unit with a large evaporator (1335x475x265mm), using R449A refrigerant on 400V to maintain -18°C to -22°C in negative cold rooms from 10.88 to 21.1 m³. With 2.68 kW and automatic defrost, it provides powerful, flexible deep-freeze refrigeration for large commercial cold room installations.

Size: (H) 586mm x (W) 856mm x (D) 596mm

Delivery: 4–10 working days

Warranty: 1 Year Parts & Labour

Combisteel Negative Split Unit 10.88–21.1 m³

✅ Covers 10.88 to 21.1 m³ negative cold rooms for high-volume freezer storage

✅ Split system allows flexible placement of evaporator and compressor

✅ Maintains -18°C to -22°C for reliable commercial deep-freeze performance

✅ Automatic defrost reduces maintenance and maintains consistent efficiency

✅ R449A low-GWP refrigerant with 1500 g charge for effective cooling

Specifications

Width: 856mm
Depth: 596mm
Height: 586mm
Gross Weight: 111 kg
Voltage: 400V
Electrical Power: 2.68 kW
Cooling Agent: R449A
Temperature Range: -18°C / -22°C
Freezing Capacity: 10.88–21.1 m³

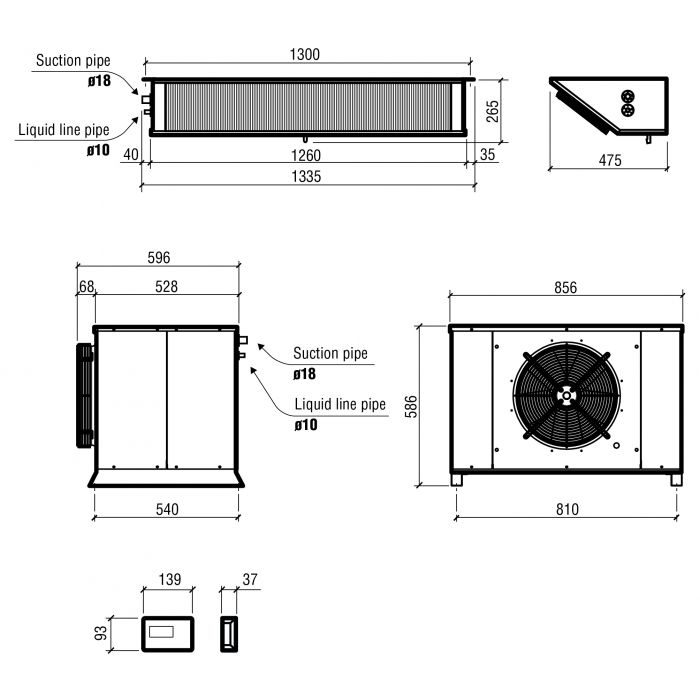

Evaporator Dimensions (WxDxH): 1335x475x265mm
Defrost: Automatic
Refrigerant Quantity: 1500 g
