Combisteel Coldroom Monoblock Positive Wall-Mounted Straddle-Type Unit 9,1-13 M3

by Combisteel

€2,373.38

Quantity

The Combisteel Coldroom Monoblock Positive Wall-Mounted Straddle-Type Unit 9.1–13 M3 is a high-capacity integral refrigeration engine designed for coldrooms up to 13m³ — wall-mounted, self-contained, no external pipework needed.

✅ Cooling capacity >9.1–13W — suited to large walk-in coldrooms up to 13m³

✅ Temperature range 0/+8°C for reliable positive cold storage

✅ R452A refrigerant — low GWP, high efficiency

✅ Straddle-type unit — mounts through the coldroom wall or ceiling

✅ 230V single-phase power, max ambient 43°C

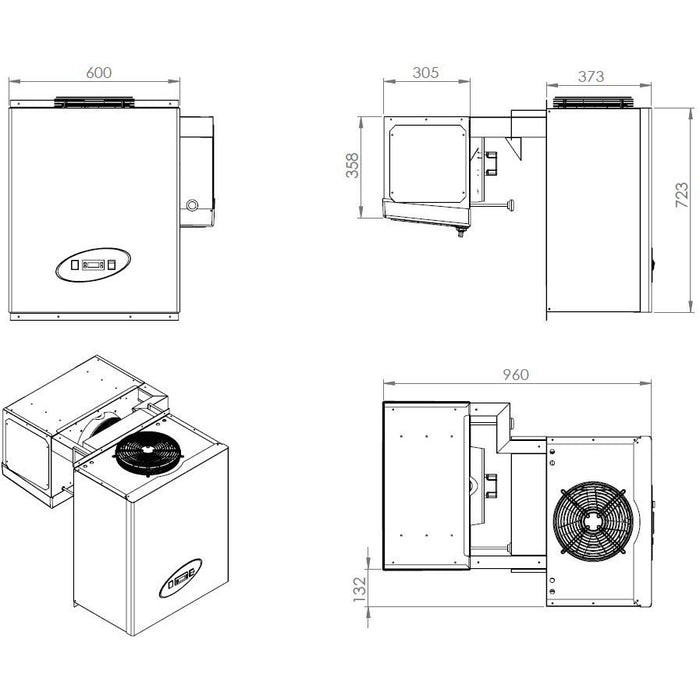

Size: (H) 723 x (W) 600 x (D) 960mm
Delivery: 4–10 working days
Warranty: 1 Year Parts & Labour

Combisteel Coldroom Monoblock Positive Wall-Mounted Straddle-Type Unit 9.1–13 M3

A monoblock refrigeration engine is an integral unit that straddles the cold room wall or ceiling, with the condenser section outside and the evaporator inside. No additional refrigeration pipework is required, making installation straightforward for a commercial refrigeration engineer.

✅ Cooling capacity >9.1–13W for effective temperature control in large rooms

✅ Temperature range 0/+8°C — positive chilling for produce, dairy, and beverages

✅ Eco-friendly R452A refrigerant for efficient, low-emission operation

✅ Electrical power 0.83kW, 230V / 50Hz

✅ Max ambient temperature 43°C — suitable for warm kitchen environments

✅ Compatible with Combisteel modular coldroom panel systems

Specifications

Cooling Capacity: >9.1–13W
Temperature Range: 0/+8°C
Cooling Agent: R452A
Electrical Power: 0.83kW
Voltage: 230V
Frequency: 50Hz
Max. Ambient Temperature: 43°C
Width: 600mm
Depth: 960mm
Height: 723mm
Gross Weight: 96kg
