CombiSteel Coldroom/Freezer Room 1500W X 2100D X 2200H 5.3m3

Description

Discover the convenience of effortlessly preserving large quantities of perishable items at optimal temperatures with Combisteel coldrooms and freezer rooms.

Designed to accommodate diverse needs, these cold storage solutions provide more than just space—they offer a range of advantages. From maintaining the freshness of food to reducing spoilage, these coldrooms and freezer rooms ensure your inventory remains in excellent condition.

Whether you require compact storage for extra ingredients or spacious capacity for bulk items, there's a Combisteel coldroom or freezer room perfectly tailored to your requirements. Furthermore, with options for indoor and outdoor installations, you can optimize space utilization without sacrificing efficiency.

Installation

Watch our installation video below to witness the straightforward setup process for these cold rooms.

• If you're uncertain about installing the flat pack unit yourself, it's advisable to seek assistance from a commercial refrigeration engineer.

• Additionally, consider installing an air curtain in freezer rooms (sold separately).

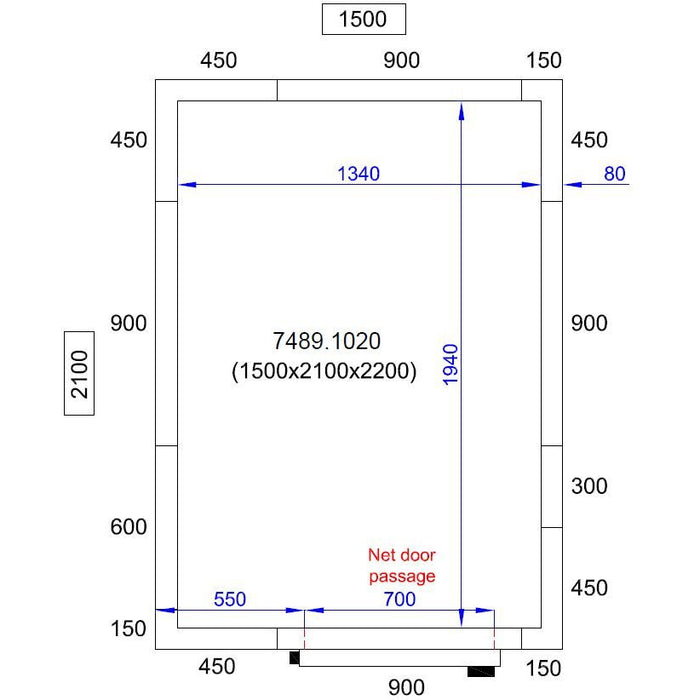

• Note that not all compressor units can be positioned adjacent to the door; refer to the drawing for clarification, as some may need to be placed on a side wall.

Specifications

Doors clear opening WxH (mm)
700x1845
Dim. interior WxDxH (mm)
1340x1940x2040
Width door (mm)
700
Insulation thickness (mm)
80
Capacity (m3)
5.3
EAN code
6017432372333
Type
Pro Line
Width (mm)
1500
Depth (mm)
2100
Height (mm)
2200
Gross Weight (kg)
320

Coldroom Engine

Width (mm)
450
Depth (mm)
860
Height (mm)
780
Gross Weight (kg)
80
Voltage (Volt)
230
Frequency (Hz)
50
Electrical power (kW)
0,65
Cooling agent
R 290
Temperature range (°C)
+2/+8
Cooling capacity (W)
>4,1-6,5
Max. ambient temperature (°C)
43
Brand
COMBISTEEL
Refrigerant quantity (gr)
130

Freezer Room Engine

Width (mm)
450
Depth (mm)
907
Height (mm)
723
Gross Weight (kg)
105
Voltage (Volt)
230
Frequency (Hz)
50
Electrical power (kW)
0,96
Cooling agent
R 290
Temperature range (°C)
-12/-20
Freezing capacity (W)
>4,1-6,5
Max. ambient temperature (°C)
43
Brand
COMBISTEEL
Refrigerant quantity (gr)
150
